Dell PowerEdge R940XA 4U Rack Server Barebone with 8 x 3.5" Backplane and C621 Chipset

Ask Lasest Price
Brand Name :	dell
Model Number :	r940xa
Price :	$4,230.00/pieces >=1 pieces

Add to Cart

Product Details
Company Profile

Dell PowerEdge R940XA 4U Rack Server Barebone with 8 x 3.5" Backplane and C621 Chipset

Product Description

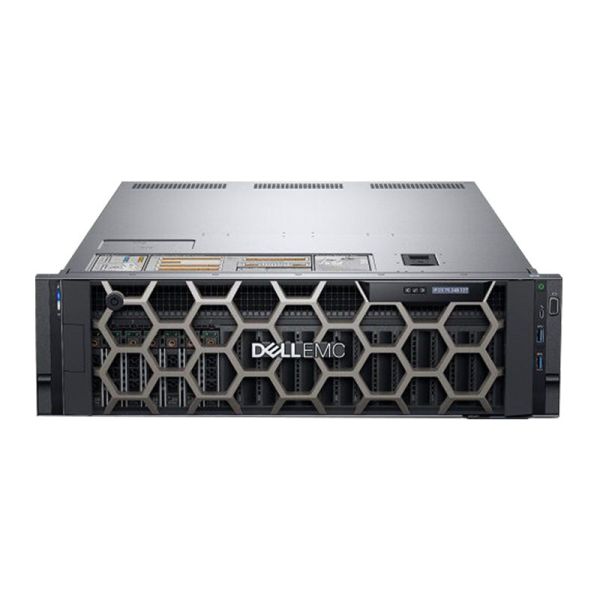

Dell PowerEdge R940xa Rack Server

Dramatically accelerating artificial intelligence and machine learning
Quickly turn data insights into business results with PowerEdge R940xa. The R940xa delivers powerful four-way performance in an
expandable 4U design for application acceleration.

A powerful 1:1 combination of four cpus and four Gpus drives database acceleration

Maximize application performance and density

PowerEdge R940xa enables GPU database acceleration to provide real-time decision making for computationally intensive applications. The R940xa uses a combination of four cpus and four Gpus to deliver consistent high performance for demanding applications. R940xa allows you to dynamically scale capacity and performance as your business-critical workloads change, including: • Maximize performance with Intel ® Xeon ® expandable processors, up to 112 cores. • Choose from up to four double-width Gpus or up to eight FPgas to speed up applications. • Supports large data sets of up to 48 DIMMs (12 of which can be NVDIMM) and up to 6TB memory. • Expand local capacity with up to 32 2.5-inch HDDS/SSDS and up to four direct-connected NVMe drives. • Connect external devices with up to 12 PCIe slots for fast expansion.

Automate maintenance through Dell EMC OpenManage

The Dell EMC OpenManage™ portfolio helps streamline overall data center IT operations by enabling intelligent, automated management of daily tasks. The R940xa is combined with unique agent-free administration capabilities for easy administration, freeing you up to perform advanced projects. • Leverage your existing IT management platform with rich OpenManage integration and connectivity. • Take advantage of QuickSync 2 and easily access your server from your phone or tablet.

Protect your data center with built-in security

Each PowerEdge server has a network resilience architecture that integrates security into the full server life cycle. R940xa has the new security features described above, so you can safely and reliably deliver the right data to your customers wherever they are. Dell EMC considers every aspect of system security, from design to termination of service, to ensure that trust is built and a secure and worry-free system is provided. Rely on a supply chain of security components to ensure security from the factory to the data center. • Secure data with encrypted signed firmware packages and secure startup. • Prevent unauthorized or malicious changes with server locking. • System erase quickly and securely erases all data from storage media, including hard drives, solid-state drives, and system memory.

Specification

Technical specification	Dell PowerEdge R940xa Rack Server
processor	Up to four Intel ® Xeon ® scalable processors with up to 28 cores per processor
memory	48 DDR4 DIMM slots support RDIMMs or LRDIMMs, with speeds up to 2666MT/s and up to 6TB Up to 12 NVMS with up to 384GB Only Registered ECC DDR4 DIMMs are supported
Memory controller	Internal controller: PERC H730P, H740P, H330 software RAID (SWRAID) S140 Start the optimized storage subsystem: HWRAID, 2 M.2 SSDS, 120 GB or 240 GB External PERC (RAID) : H840 12Gbps SAS HBA (non-RAID) : External 12Gbps SAS HBA (non-RAID). Internal HBA330 (Non-RAID)
Driver bracket	Front-end driver bracket: Up to 8 2.5-inch SAS/SATA (HDD/SSD), up to 30TB, or up to 24 2.5-inch SAS/SATA (HDD/SSD), up to 92TB, Or up to 32 SAS/SATA (HDD/SSD) with up to 4 NVME PCIe SSDS for up to 132TB
Power supply	Platinum: 1100W, 1600W, 2000W, 2400W DC: 1100W Mixed mode /HVDC: 1100W1 Hot swap power supply with full redundancy option Six hot-swappable fans with N +1 redundancy
dimension	Dimensions: Frame (4U) Chassis length: 482 mm Chassis weight: 56 kg Chassis depth: 812 mm
baffle	Optional LCD baffle or safety baffle
tool	Dell EMC Repository Manager Dell EMC updated software package Dell EMC System Update Dell EMC Server Update Utility
security	TPM 1.2/2.0 (Optional) Firmware signed in encrypted mode Silicon trust root Safe start System locking Safe erase
I/O and ports	Network subcard options Four 1GE, four 10GE, two 10GE+ two 1GE, or two 25GE Front-end ports: Video, 2 USB 2.0, 1 managed (micro-sub) dedicated IDRAC for direct USB connection. Back-end port: Video, serial port, 2 USB 3.0 Internal port: 1 USB 3.0 Video card: VGA PCIe: Up to 12 Gen3 slots, (6x16 slots or 2x16 + 10x8 slots)
Accelerator options:	Up to 4 double-width Gpus or up to 8 full-height FPGas GPU: Nvidia Tesla P100, P40, V100
Supported operating systems	Canonical® Ubuntu® LTS Citrix® XenServer® Microsoft Windows Server® using Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi For more information on specifications and interoperability, see Dell.com/OSsupport
